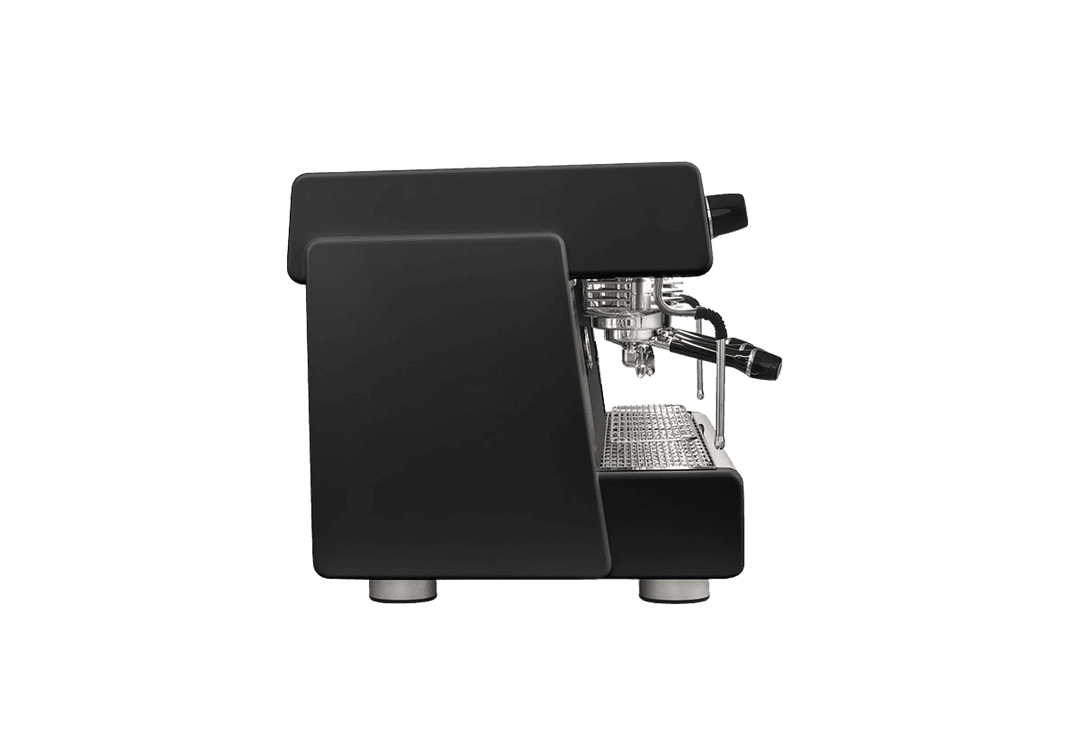

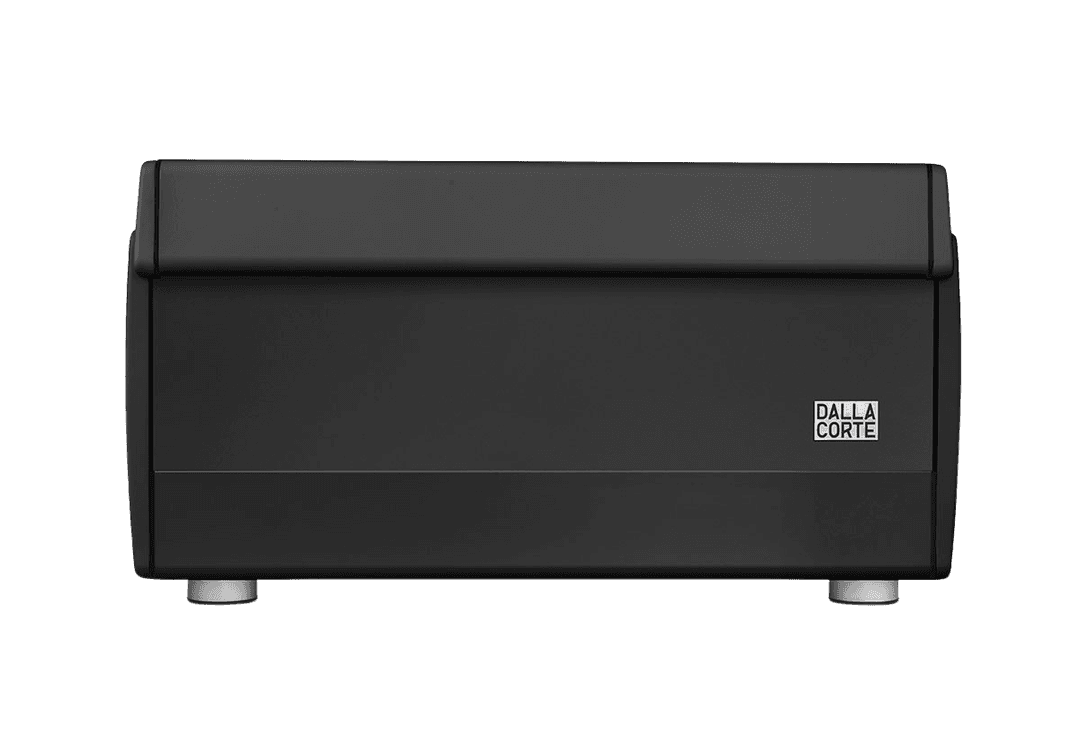

Image 1 of 3: EVO 2
Technical Specifications
2 GROUPS
Dimensions (l x h x p)
730 x 510 x 525 mm
Weight
67 kg
Maximum power
4,5 kW
Connected load
380/400 V 3 N + T, 50/60 Hz; 220/230 V, 50/60 Hz; 220/230 V 3, 50/60 Hz
Boiler capacity
7,5 l
Group capacity
0,5 l
Energy consumption
7,9 kW
High version dimensions (l x h x p)
730 x 525 x 525 mm
3 GROUPS
Dimensions (l x h x p)
940 x 510 x 525 mm
Weight
83 kg
Maximum power
6,3 kW
Connected load
380/400 V 3 N + T, 50/60 Hz; 220/230 V, 50/60 Hz; 220/230 V 3, 50/60 Hz
Boiler capacity
13 l
Group capacity
0,5 l
Energy consumption
11,3 kW
High version dimensions (l x h x p)
940 x 525 x 525 mm
4 GROUPS
Dimensions (l x h x p)
1150 x 510 x 525 mm
Weight
100 kg
Maximum power
7,2 kW
Connected load
380/400 V 3 N + T, 50/60 Hz; 220/230 V, 50/60 Hz; 220/230 V 3, 50/60 Hz
Boiler capacity
13 l
Group capacity
0,5 l
Energy consumption
13,0 kW
High version dimensions (l x h x p)
1150 x 525 x 525 mm
DC System
Multiboiler
Cool Touch
Energy Saving
Custom Colours
Lead Free
58mm Filter
