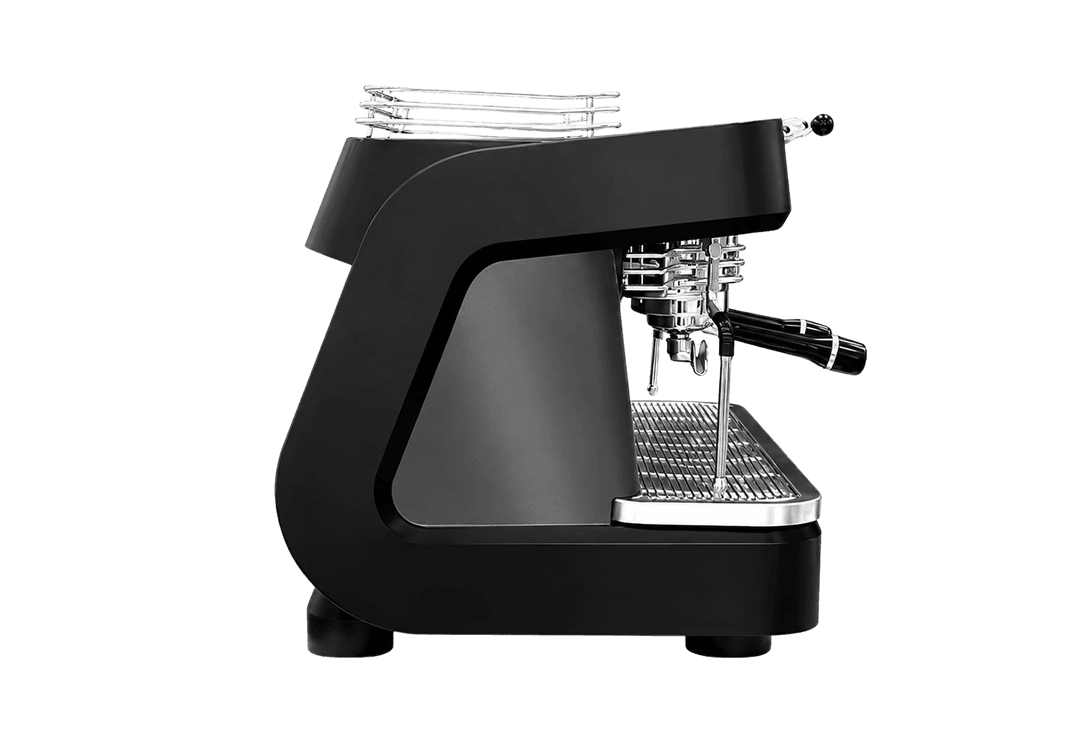

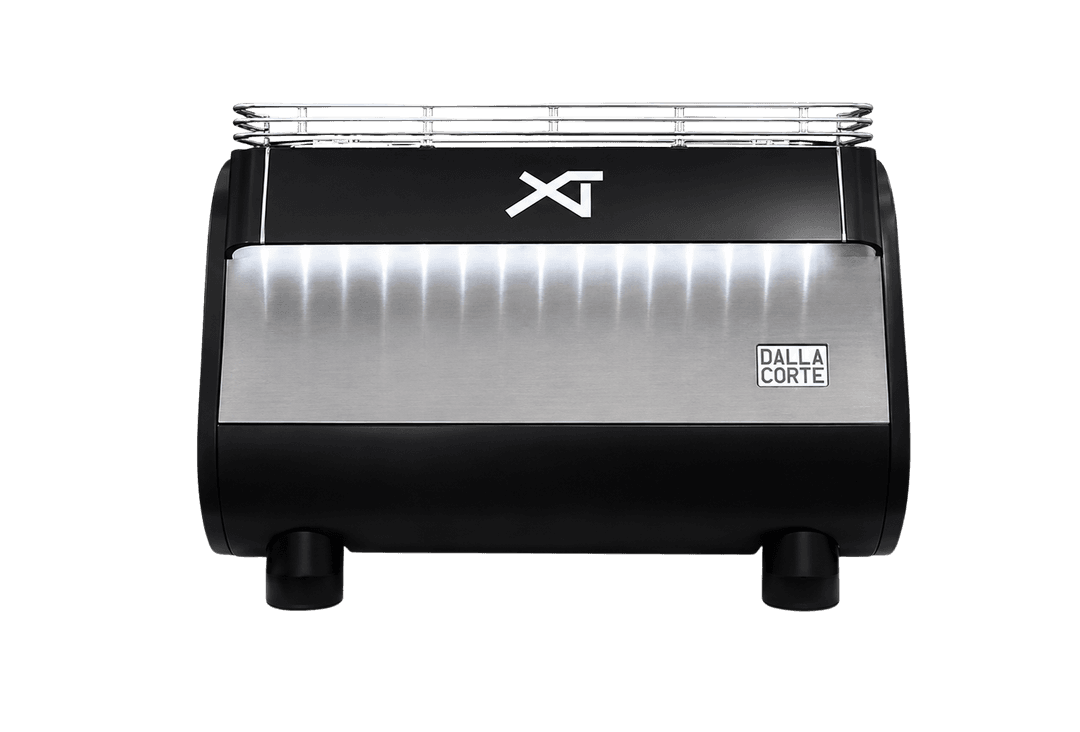

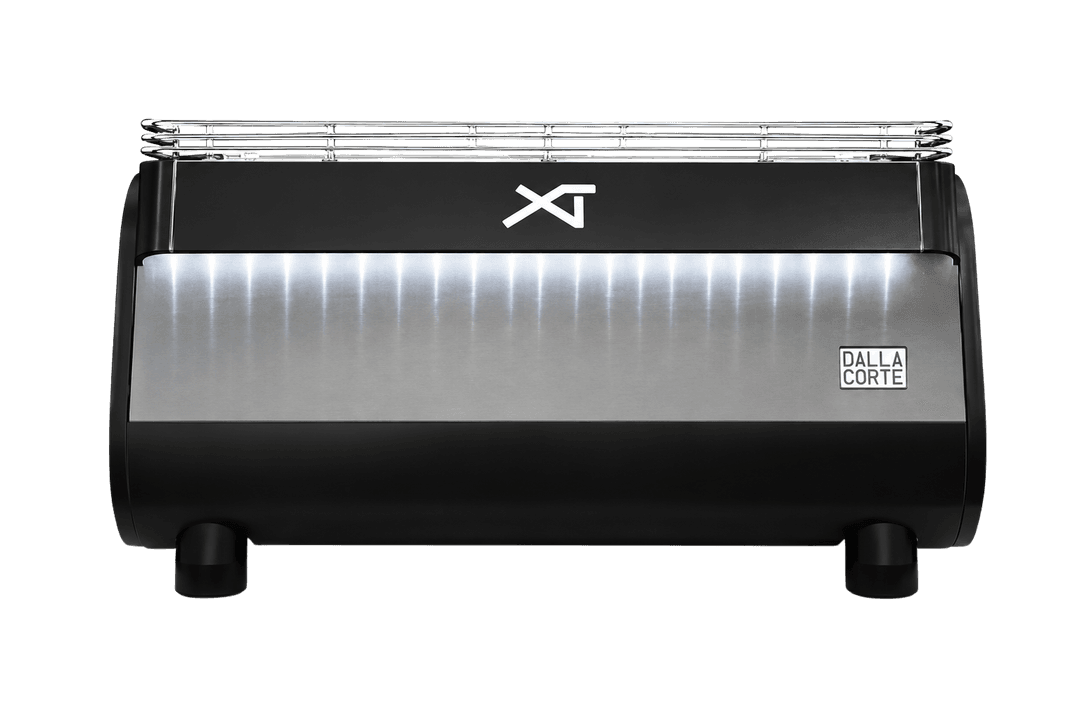

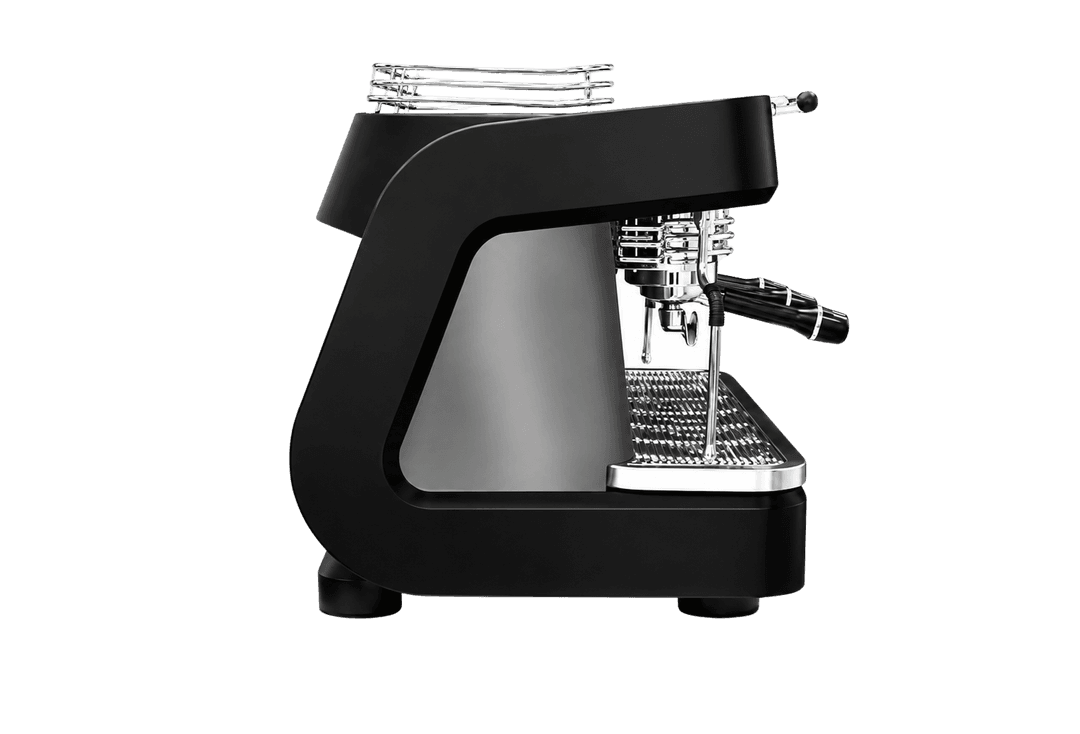

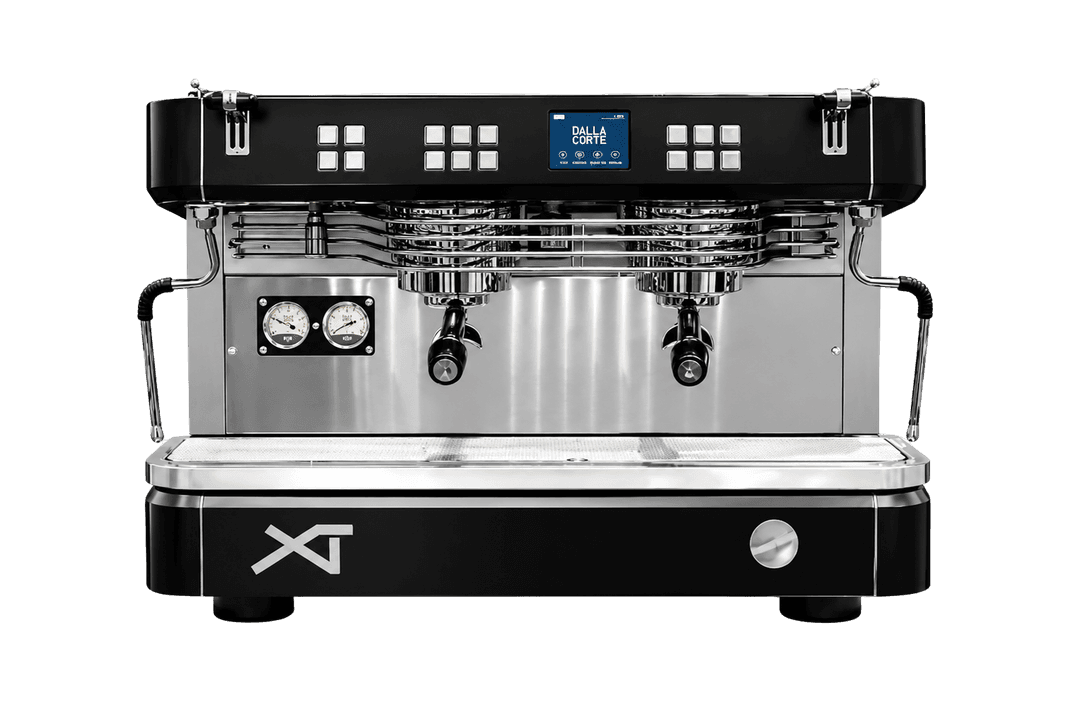

Image 1 of 6: XT Classic
Technical Specifications
2 GROUPS
Dimensions (l x h x p)
730 x 525 x 510 mm
Weight
74 kg
Maximum power
4,5 kW
Connected load
230/240 V 1 Ph; 200/230 V 3; 400 V 3 N
Boiler capacity
7,5 l
Group capacity
0,5 l
Energy consumption
7,9 kW
Serial connection
RS 232/485
Low-power system
included
Timer
included
Backlight
included
3 GROUPS
Dimensions (l x h x p)
940 x 525 x 510 mm
Weight
88 kg
Maximum power
6,3 kW
Connected load
230/240 V 1 Ph; 200/230 V 3; 400 V 3 N
Boiler capacity
13 l
Group capacity
0,5 l
Energy consumption
11,3 kW
Serial connection
RS 232/485
Low-power system
included
Timer
included
Backlight
included
DC System
Multiboiler
Cool Touch
Fixed Flow
Weight Control
Energy Saving
Custom Colours
Custom Materials
58mm Filter
Carbon Neutral
DETAILS
More about this product
- Dalla Corte XT 2-Group espresso machine
- 1 single-spout portafilter
- 1 double-spout portafilter
- Naked (bottomless) portafilter
- 58mm flat-base tamper
- Group head cleaning brush
- Backflushing detergent (starter pack)
- User manual & warranty card
- 2 independent group heads with dedicated PID-controlled boilers
- Programmable pre-infusion per group
- 2 articulated steam wands with autosteam
- Power: 5500W, single-phase
- Voltage: 220-240V, 50Hz
- Mains water inlet: 3/8" with integrated softener bypass
- Dimensions: 90 × 56 × 49 cm (W × D × H)
- Net weight: 79 kg
- Connect to a dedicated 30A circuit
- Plumb to mains via the included 3/8" line
- Allow 15 minutes from cold start to brewing temperature
- Pull a blank flush before each shot to rinse the screen
- Recommended dose: 18-20g for double, 9g for single
- Adjust per-group temperature via the PID dial
- Steam: purge wand, steam, purge again, wipe
- Backflush each group head daily with detergent
- Purge and wipe steam wands after every drink
- Replace softener cartridge every 6 months or 1500 L
- Descale annually with a food-safe descaler
- Clean drip tray and grates daily
- 2-year manufacturer warranty (parts & labour)
